Medical Substance Pipe Marking | NFPA99/CGA C-9

NFPA 99/CGA C-9 Pipe Marking

Substances used for medical purposes have their own standards and best practices as well. Since chemical substances used in hospitals are primarily gases, which are highly flammable, the National Fire Prevention Association (NFPA) is the entity that regulates and sets safety standards. Those labeling methods are used by OSHA to assess compliance.

The NFPA requires that all pipes carrying medical gases such as oxygen, nitrous oxide, and nitrogen in medical facilities be labeled. Not only does this help nurses and doctors correctly identify the type of gas but labeling and following the NFPA color code helps prevent accidents during maintenance work on the gas lines.

Like other labeling standards, the NFPA 99/CGA C-9 pipe marking standard requires labels to include the following information:

• Pipe contents
• Pressure level
• Flow direction

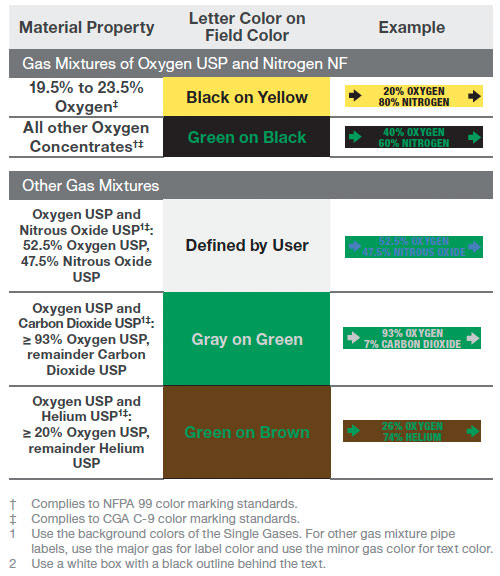

See charts below for NFPA color-coding information, and for specific instructions on gas mixtures.

Proper Pipe Marking is Essential for Patient Care

Proper medical pipe marking is essential for ensuring patient safety, regulatory compliance, and efficient facility management in healthcare environments. Clearly labeled medical gas and vacuum systems allow healthcare professionals and emergency responders to quickly identify pipe contents, reducing the risk of errors and enhancing response times in critical situations. By following established standards, hospitals and medical facilities can maintain a safe and organized infrastructure that supports both daily operations and emergency preparedness. In the end, a well-marked medical piping system is not just about compliance—it is a vital component of delivering safe and effective patient care.
